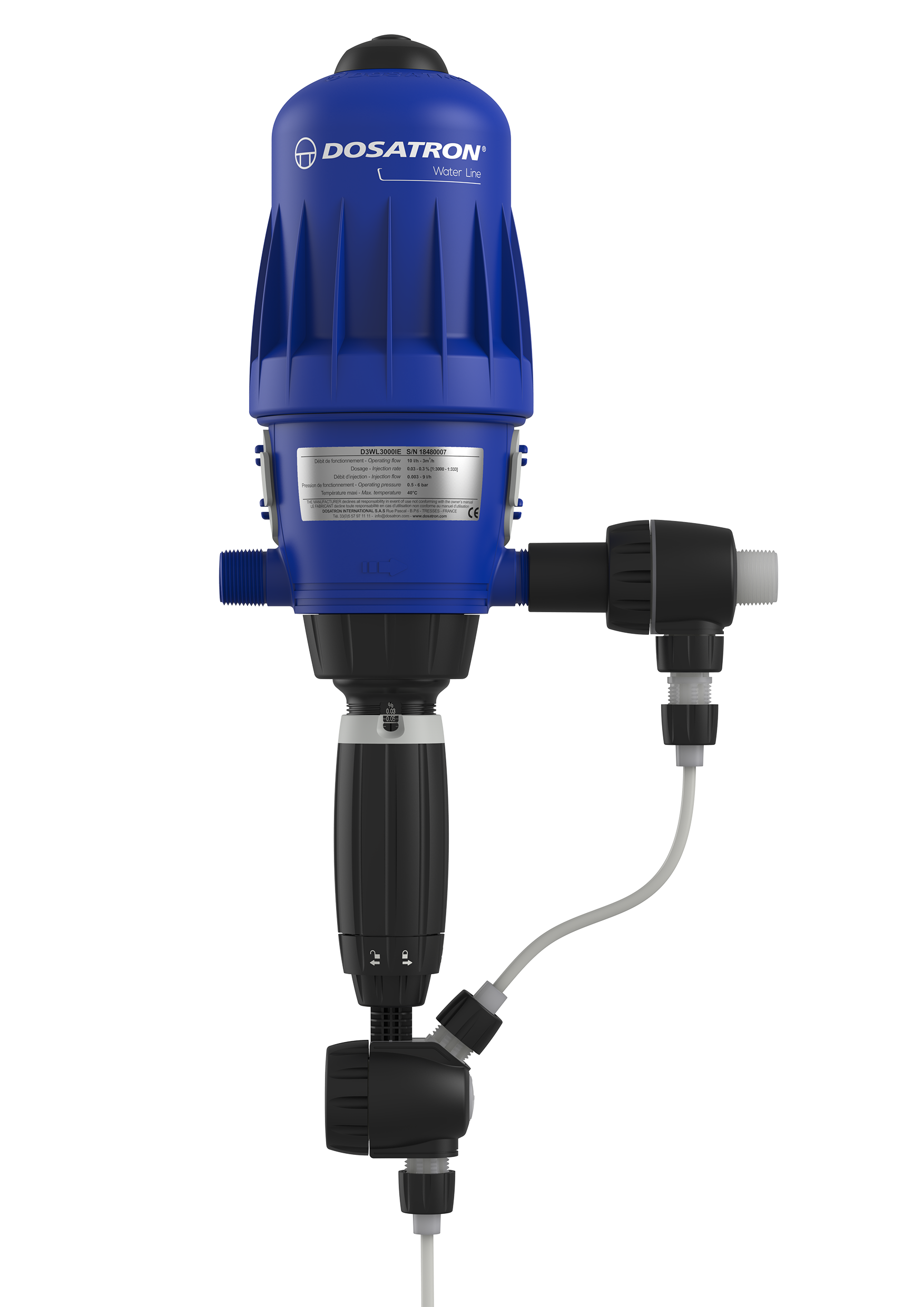

Dosatron Liquid Dispenser – D3 WL 0.03-0.3 % IE AF N
Water Line | D3
Part no: D3WL3000NIEAF
The D3WL range of dispensers meets the dosing needs for flow rates from 10 to 3,000 l/h.
It is characterized by:
An optimized design
A polypropylene pump casing
Highly ergonomic dosage adjustment
The availability of micro and macro dosages – One injection at the output
A choice of dosage seals according to the use of alkaline or acidic products.
Specifications
Injection range 0,03 – 0,3 % [1:3000 – 1:333]
Water flow range 10 l/h – 3 m3/h
Operating water pressure 0,3 – 6 bar
Concentrated additive injection 0,003 – 9 l/h
Stroke volume ~ 0,53 l
Connections NPT-BSP 20×27 – 3/4″M
